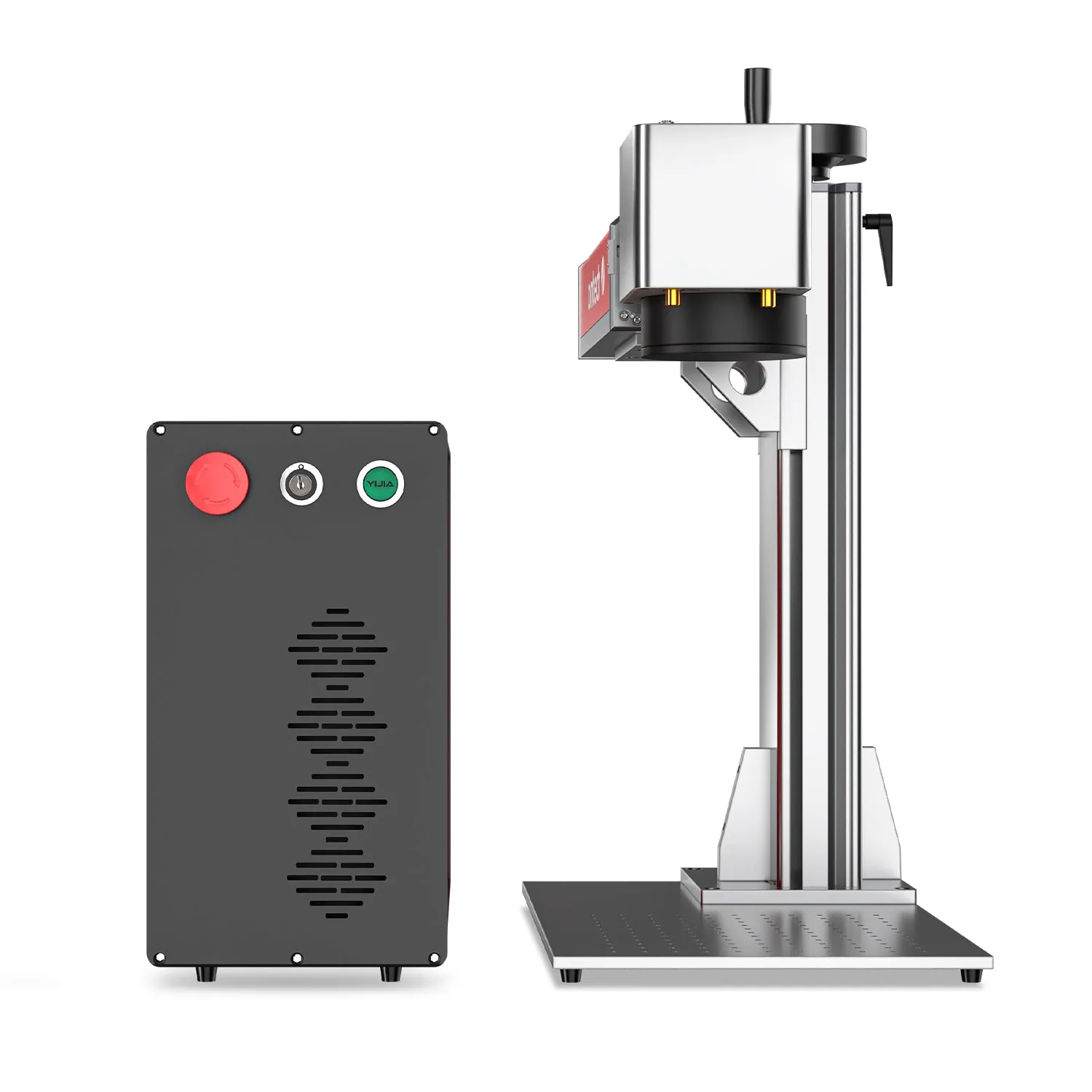

Name: MP6969-80 - 80W MOPA FIBER LASER MARKING ENGRAVING MACHINE WITH 6.9" X 6.9" WORKING AREA
SKU: 100261

Description

Bring your ideas to life with OMTech's versatile fiber laser engravers!

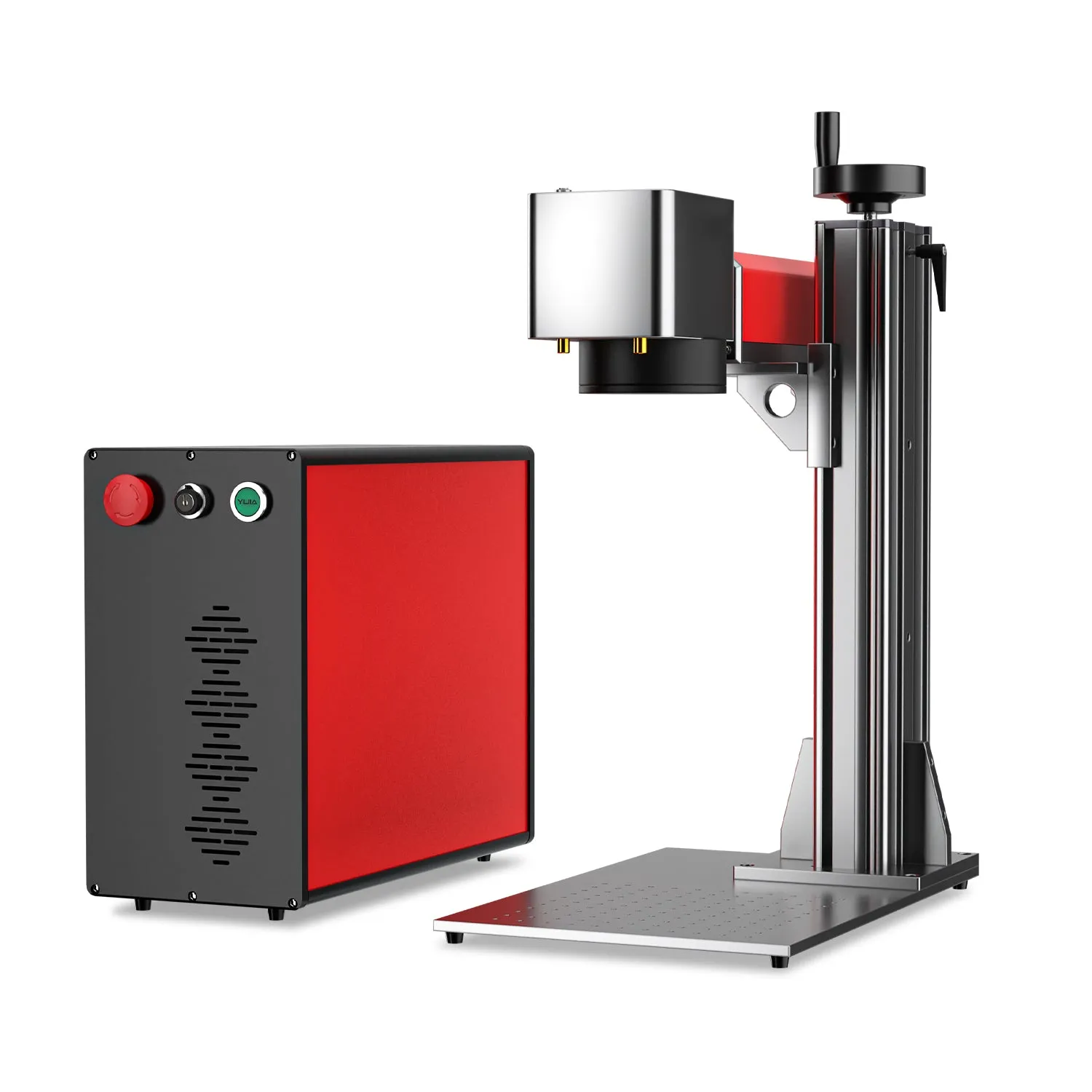

This 80W split fiber laser engraver is your ultimate resource for engraving words, logos, pictures, barcodes, and more on metal (including personalized gold and silver jewelry!) and other materials with a quick turnaround and perfect accuracy. Our device's state-of-the-art JPT air-cooled MOPA fiber laser avoids the tetchiness, fragility, and water-based mess of CO2 laser tubes. Instead, it provides solid-state efficiency, quality, stability, and durability for its entire service life of 100,000 hours. The optical amplifier boosts the beam produced by the master oscillator, with independently adjustable pulse frequency and width to offer incredible versatility applicable to a wide range of materials, ideal for colorful markings on stainless steel and high contrast aluminum etching. The Galvo-Tech galvanometric system and 2 compact Fθ field lenses of 110x110 mm (4.3x4.3 inch) & 175x175 mm (6.9x6.9 inch) working areas ensure quick work with less than 1% distortion from your design. The built-in workspace grid and laser locators make calibrating everything fast and easy. Rotary axes are not included but plug-and-play connection is provided for units with 4-pin connections to mark curved surfaces such as gold and silver rings and bracelets. The desktop laser engraver is operated from the bundled edition of EzCad2, compatible with 32 and 64-bit editions of Windows XP, Vista, 7, 8, and 10. Of course, this fiber marking machine ships with abundant insulation and padding to ensure it arrives at your door like it just came off the factory floor. For all your projects cutting and marking metals, gems, silicon, and more, you can do no better.

NOTE that this device has an open workbed. It comes with one pair of protective eyewear, but anyone else in the room with the device should also have their own laser glasses to avoid any possibility of injury from its beam.

Features

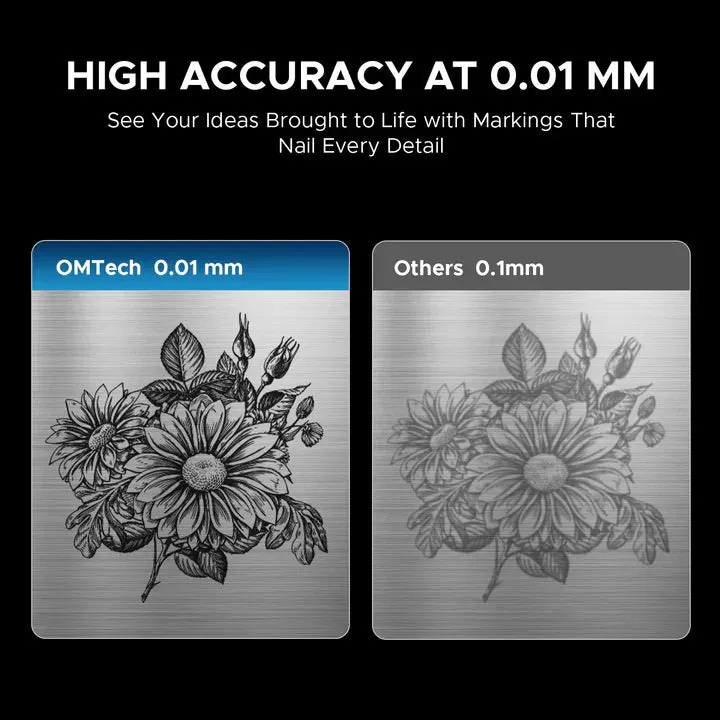

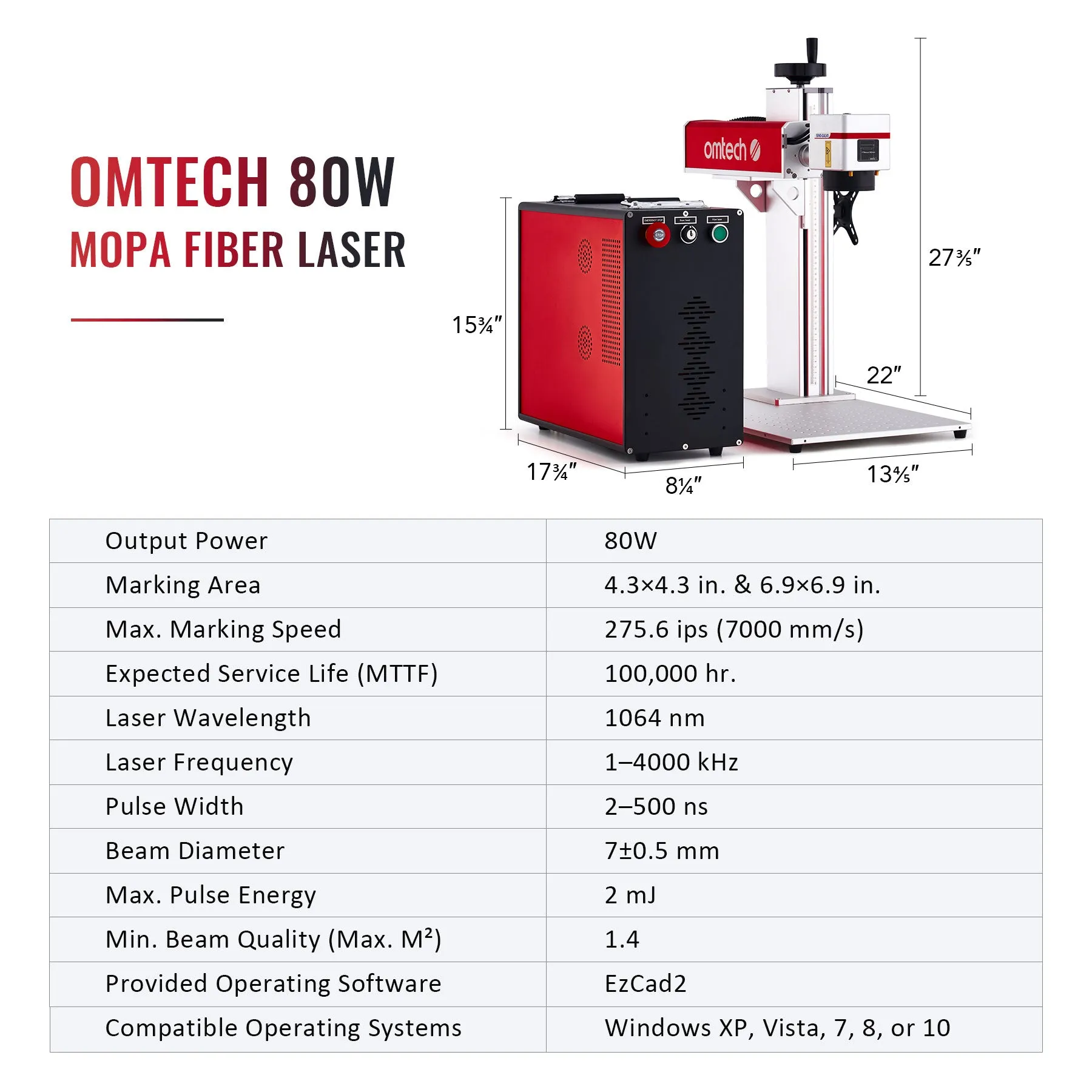

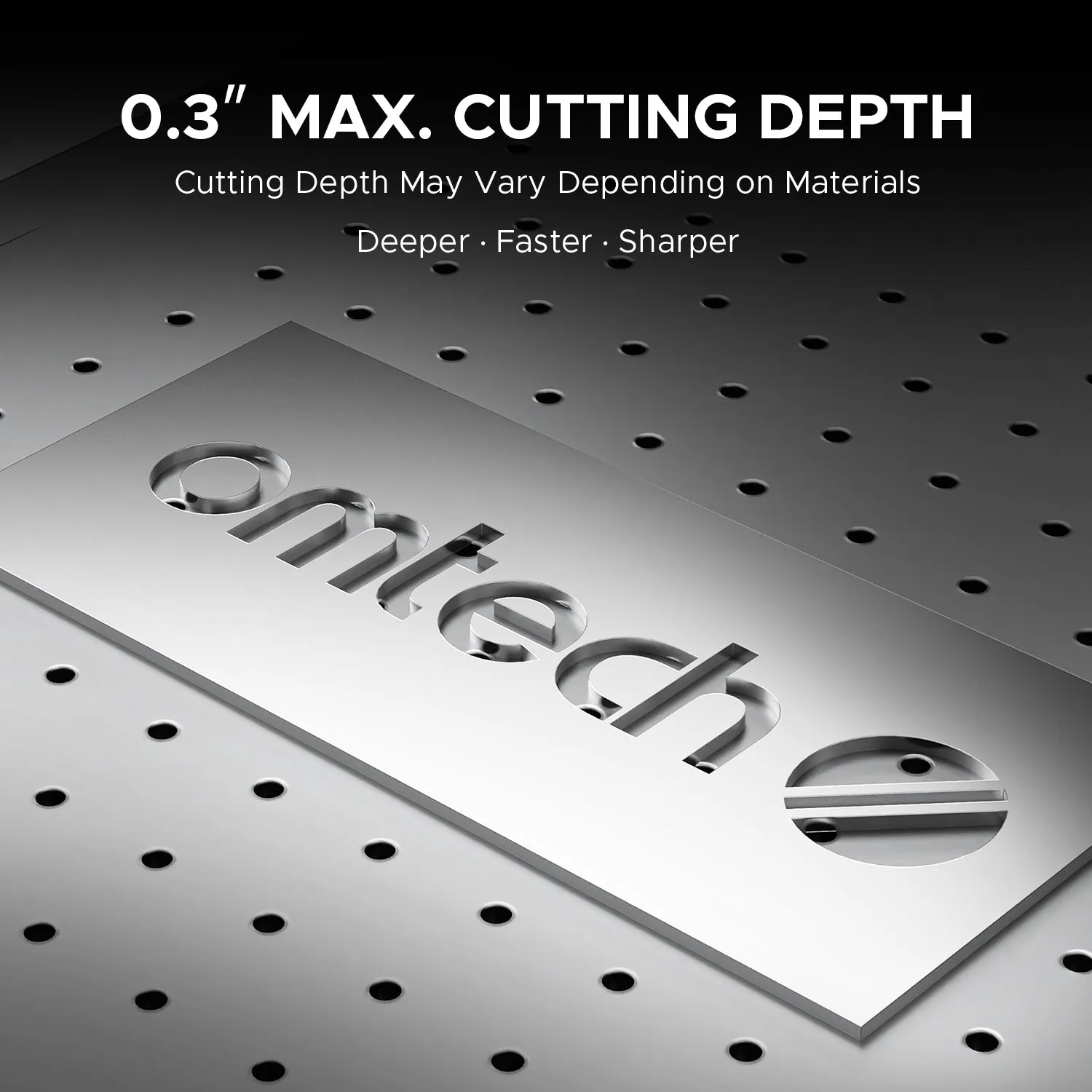

80W COLOR LASER: This 80W JPT MOPA fiber laser marking machine by OMTech will allow you to bring your ideas to life with greater speed, precision, and versatility than ever before; adjustable pulse frequency and width permit a rainbow of colorful designs on stainless steel and high contrast marking of anodized aluminum; with an MTTF over 100,000 hours, this durable laser cuts up to 0.1 mm on each pass at an accuracy of ±1 micron to render your most intricate images perfectly

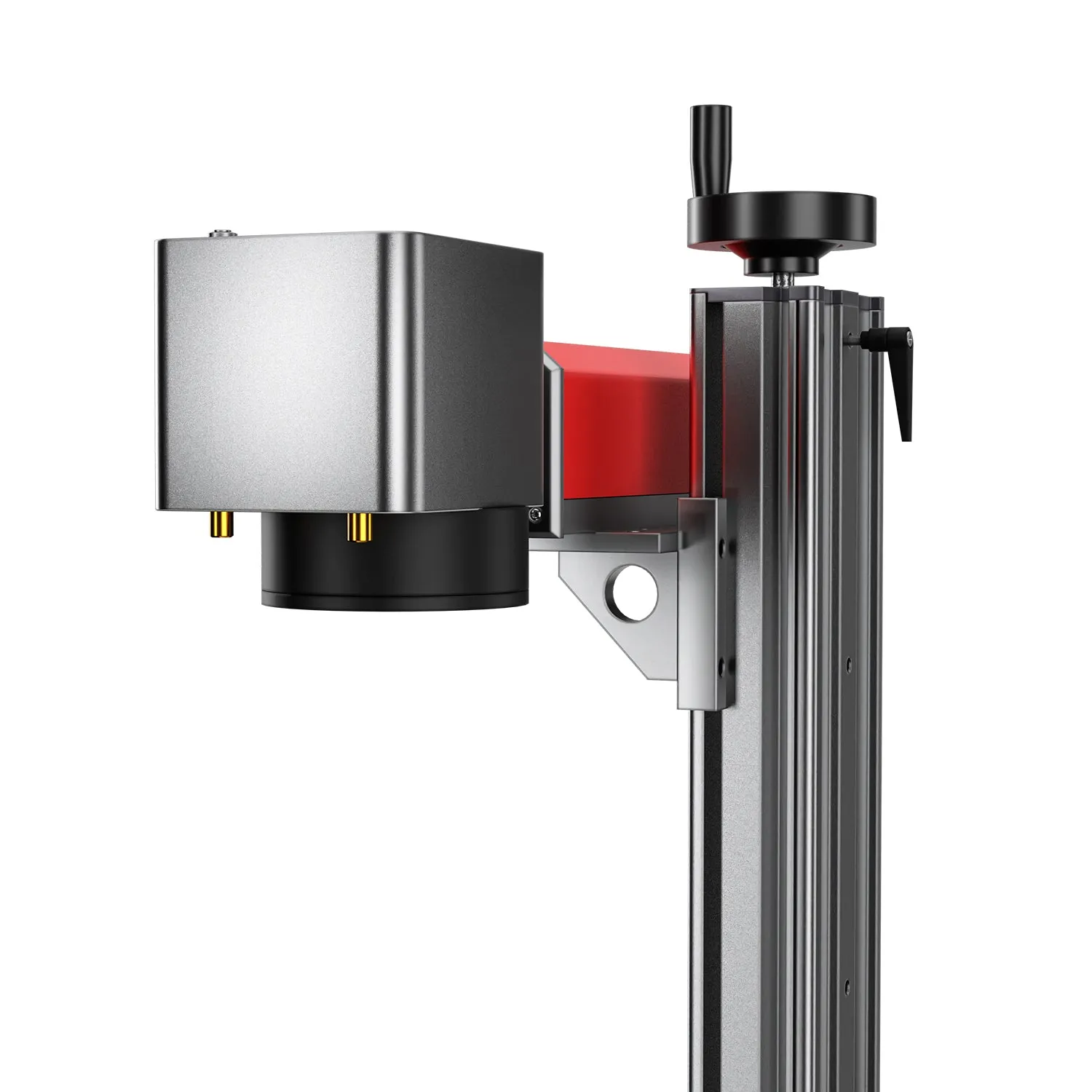

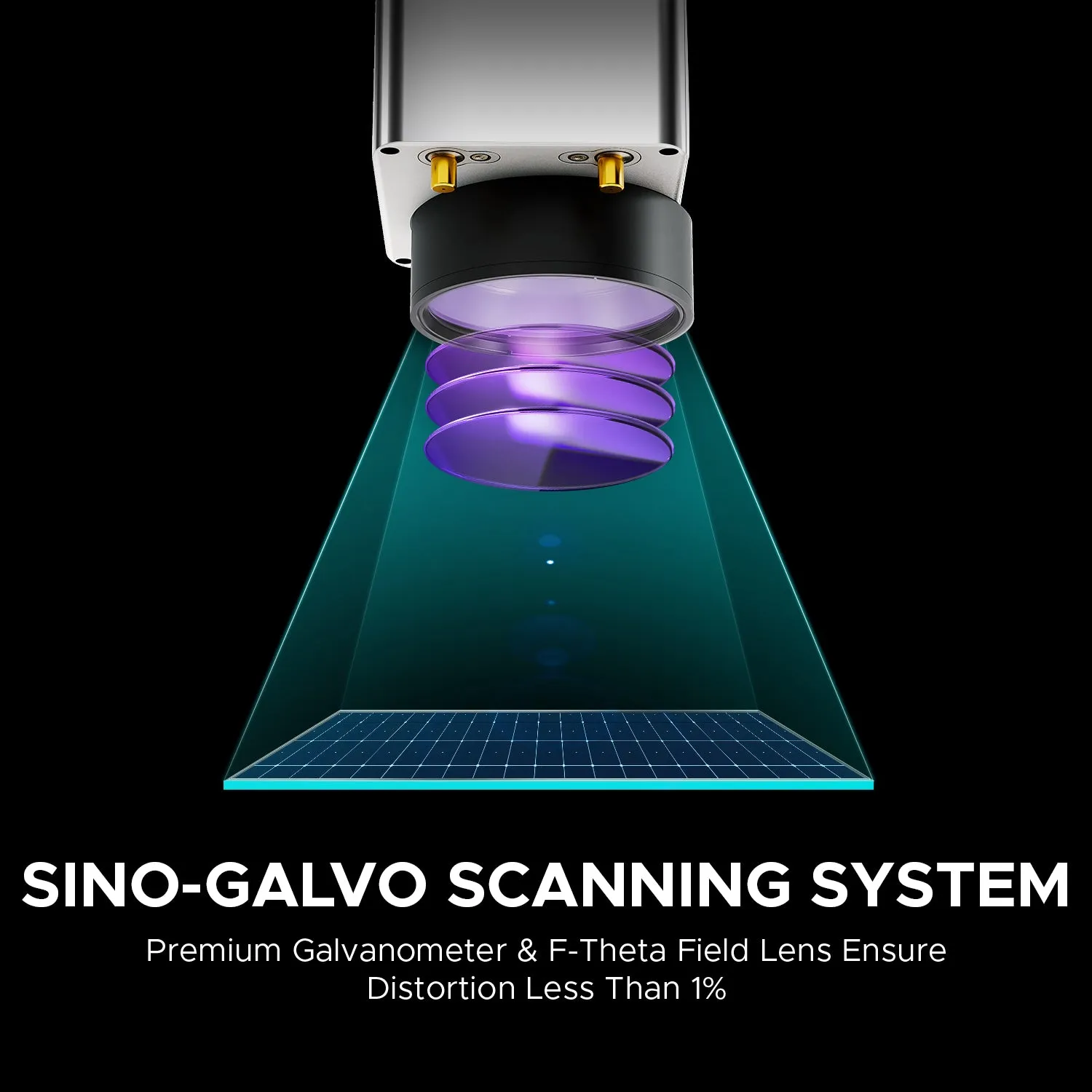

PRECISION OPTICS: This metal laser engraver's high-speed galvanometric system gives you extreme stability for quick scanning, engraving, and turnaround; make your mark at frequencies from 1-4000kHz on gemstones, silicon, steel, aluminum, brass, and more as the compact Fθ field lenses use their air-spaced design and protective and anti-reflective coatings to provide clean throughput with less than 1% distortion

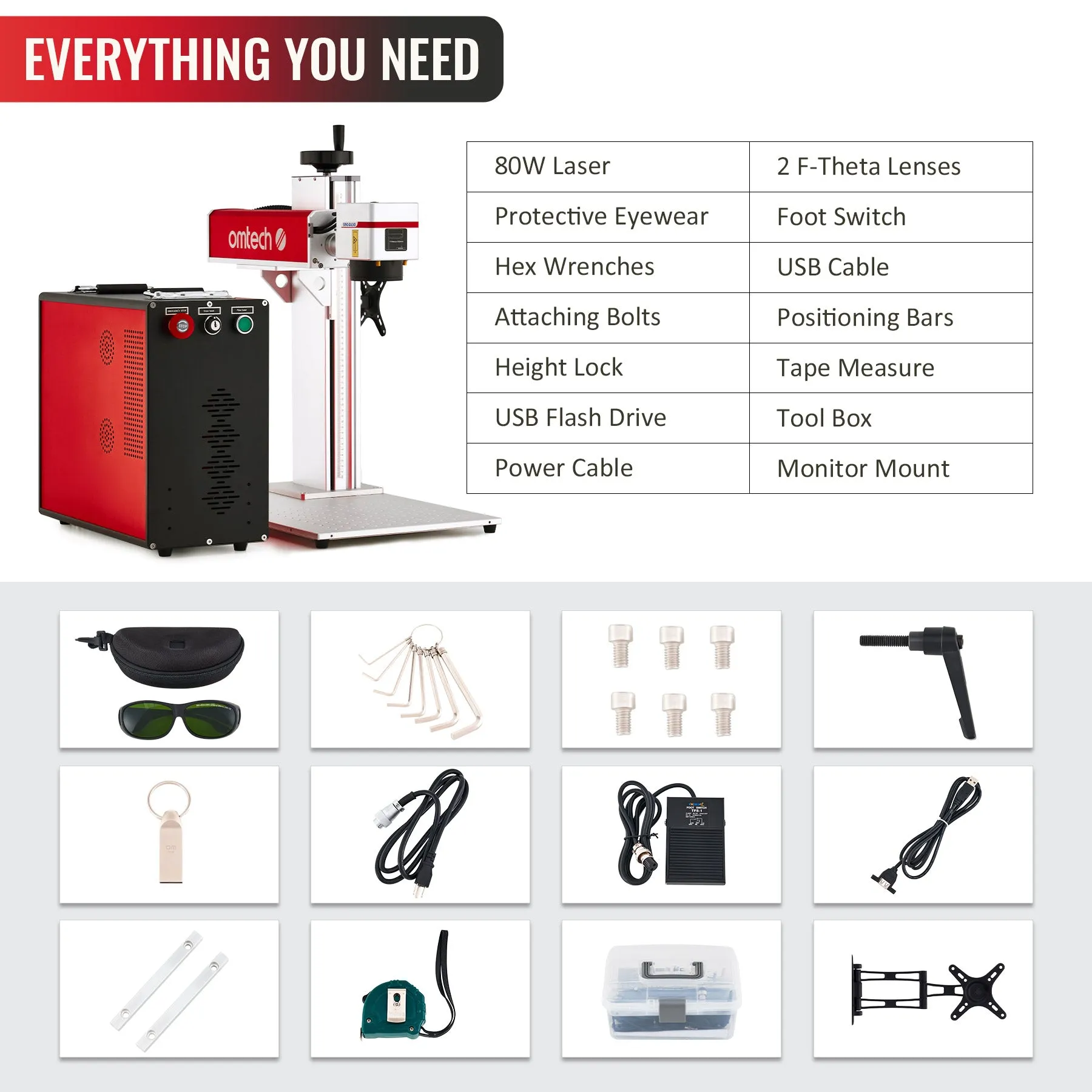

TWO SIZES: Our 80W fiber laser cutter comes with two lenses so that you can work across an expansive 175x175mm (6.9x6.9 inch) field or tighten up for more careful work over a 110x110 mm (4.3x4.3 inch) area; the bed and red dot locators allow fast and exact calibration and focusing; grid dots facilitate positioning bars that can hold your material in just the right spot every time as the laser works its magic at speeds up to 275.6 ips (7000 mm/s); and one pair of protective eyewear comes included to handle the open design

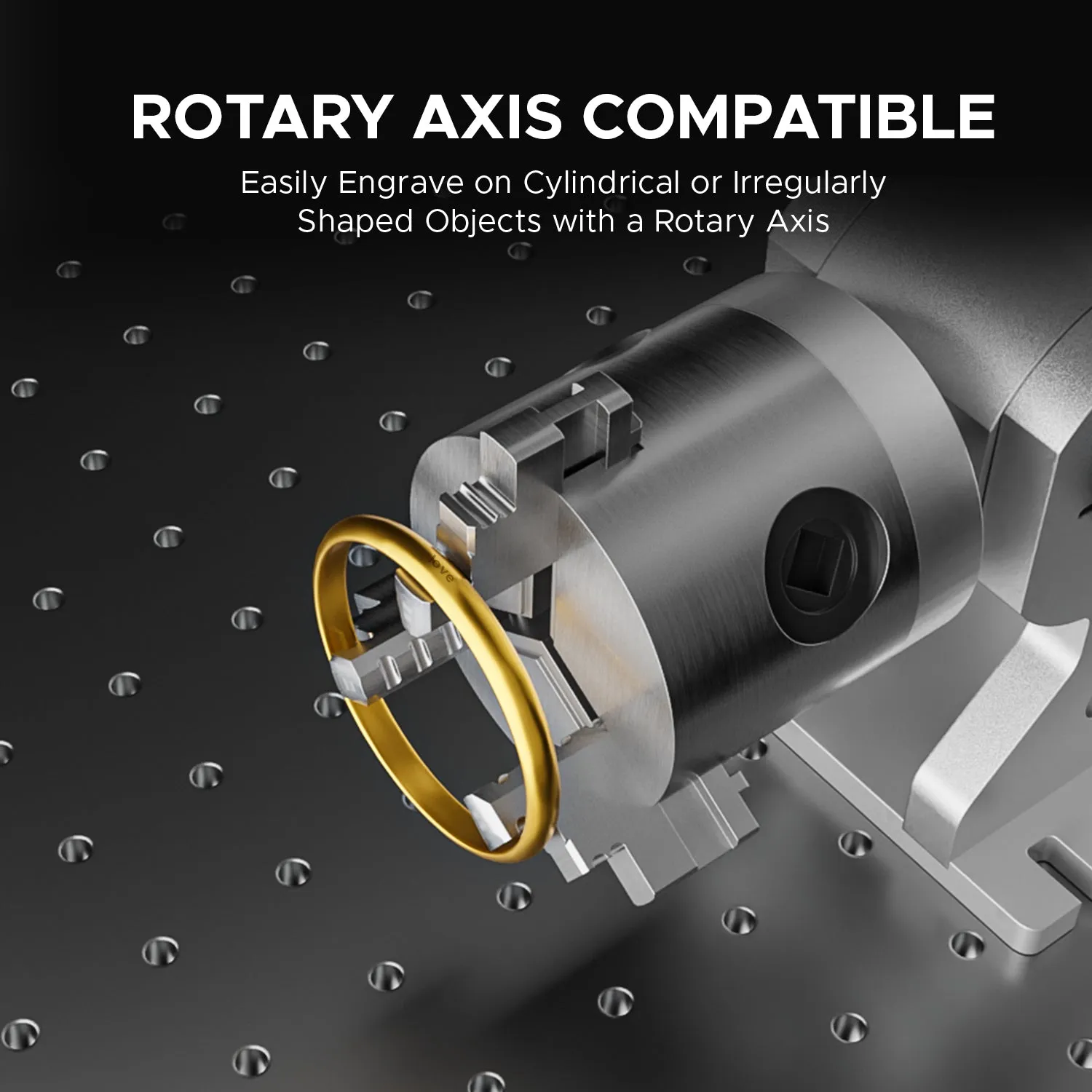

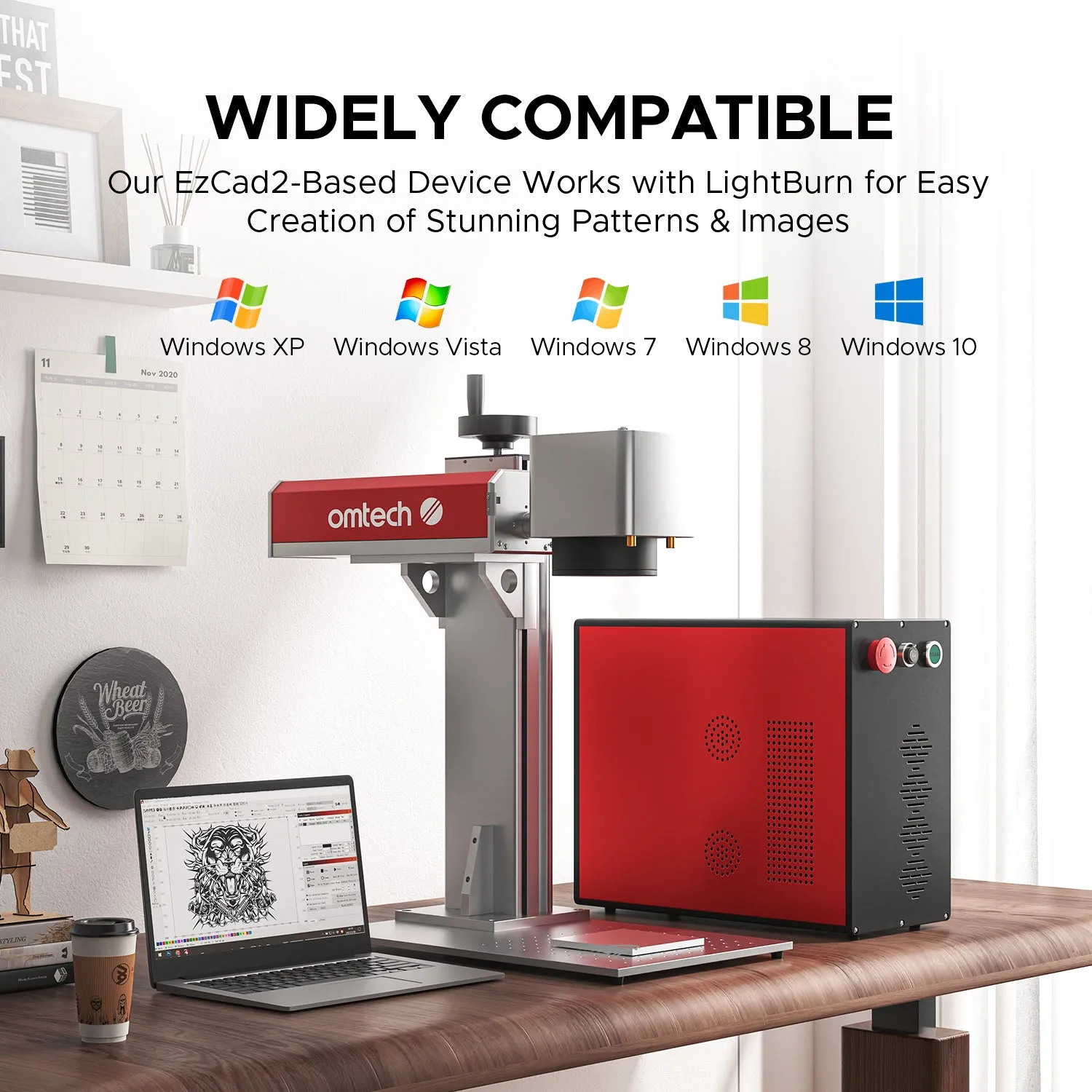

EASY OPERATION: This laser cutting and engraving tool comes bundled with EzCad2 software compatible with 32 and 64-bit editions of Windows XP, Vista, 7, 8, and 10 and a wide range of image formats; the included footpad trigger keeps batch work humming along; and when you need to engrave rings, bracelets, or other curved surfaces, your rotary axis attachment (not incl.) can be easily connected using the plug-and-play 4-pin connection port
SUPERIOR SUPPORT & SERVICE: From garage artists to backyard businesses to professional jewelers and workshops, the OMTech community continues to grow thanks to our passionate dedication to making quality engraving available to all; order your own fiber engraver today and enjoy fast US-based shipping, a strong 2 year warranty, and our ever helpful customer service and tech support
