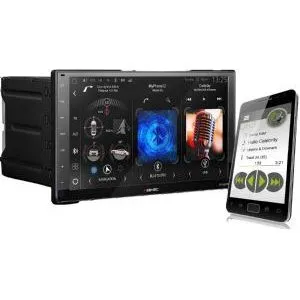

The Zenec Z-N976 is a top class infotainer for vehicles with 2-DIN mounting slot. The Z-N976 combines the most advanced navigation and innovative multimedia functions, including Wireless Apple CarPlay and Wireless Auto Android and can be operated via the capacitive 9/22.9cm touchscreen and the sensor buttons. Thanks to the modern operating concept, in which three sources are displayed in parallel, you have all the important information at a glance. The Z-N976 connects wirelessly to your smartphone via WLAN. Make phone calls, navigate or simply listen to music and podcasts. All supported functions can be conveniently controlled via Apple Siri, the Google voice assistant or via the touchscreen of the ZENEC device. Expandable with navigation Optional navigation packages are available for the Z-N976: Z-EMAP76MH-TT3 (QQ03883E) specifically for motorhomes. Both packages contain 3D map data for 44 countries in Western and Eastern Europe as well as 6.5 million POI. When route guidance is active, additional information is provided, e.g. through the TPEG service, which shows real-time traffic data. Connection of up to three cameras (optional) The Z-N976 supports up to three cameras, which can be controlled directly via the screen or the CAM sensor button. The camera image switches on automatically when reverse gear is engaged, including microphone. Via the setup menu, you can display grid lines as a camera image overlay. The auxiliary lines improve the distance estimation and can be adjusted to the vehicle size.
Specification
2-DIN infotainment system, expandable with separately available offline GPS navigation packages*1Novel graphical user-interface for simultaneous presentation and control of internal and external data sources on the device screen
Touch sensitive, capacitive 9/22.9 cm LCD-TFT display (1024 x 600 pixels) with real glass surface
OSD menu in 15 different EU languages
DAB twin-tuner with dynamic station list, DAB-FM and DAB-DAB Service Following, MOT slideshow and DLS-text
New generation FM RDS radio

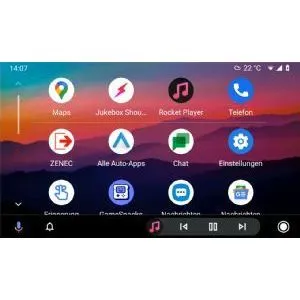

Works with wireless Google Android AutoTM
Works with wireless Apple CarPlay
Made for iPod / iPhone
Bluetooth LE 5.0 hands-free module with HFP v1.7 and A2DP music streaming
Control of up to three CVBS signal camera systems with auto switching and individually adjustable distance-helper lines
Ready for connection and control of ZENEC Multi-view reversing camera systems
CAM sensor key for direct camera function control on device front panel (Cam1, Cam2, Cam3)
SP-REM remote control App (iOS / Android) for smartphone operation of audio playback functions
Android operating system for embedded systems that can be updated via software update*2
RGB multicolor sensor key illumination.
Connecting the multifunction steering wheel
The IR-IN input on the Z-N976 can be used to connect optionally available vehicle-specific CAN/Stalk interfaces. The interface connects the Z-N976 to the vehicle CAN and the buttons of the multifunction steering wheel.
